Modeling ePassport (3)

The last step is a detailed description of the identified protocols with UML Activity diagrams that contain checks and status updates.

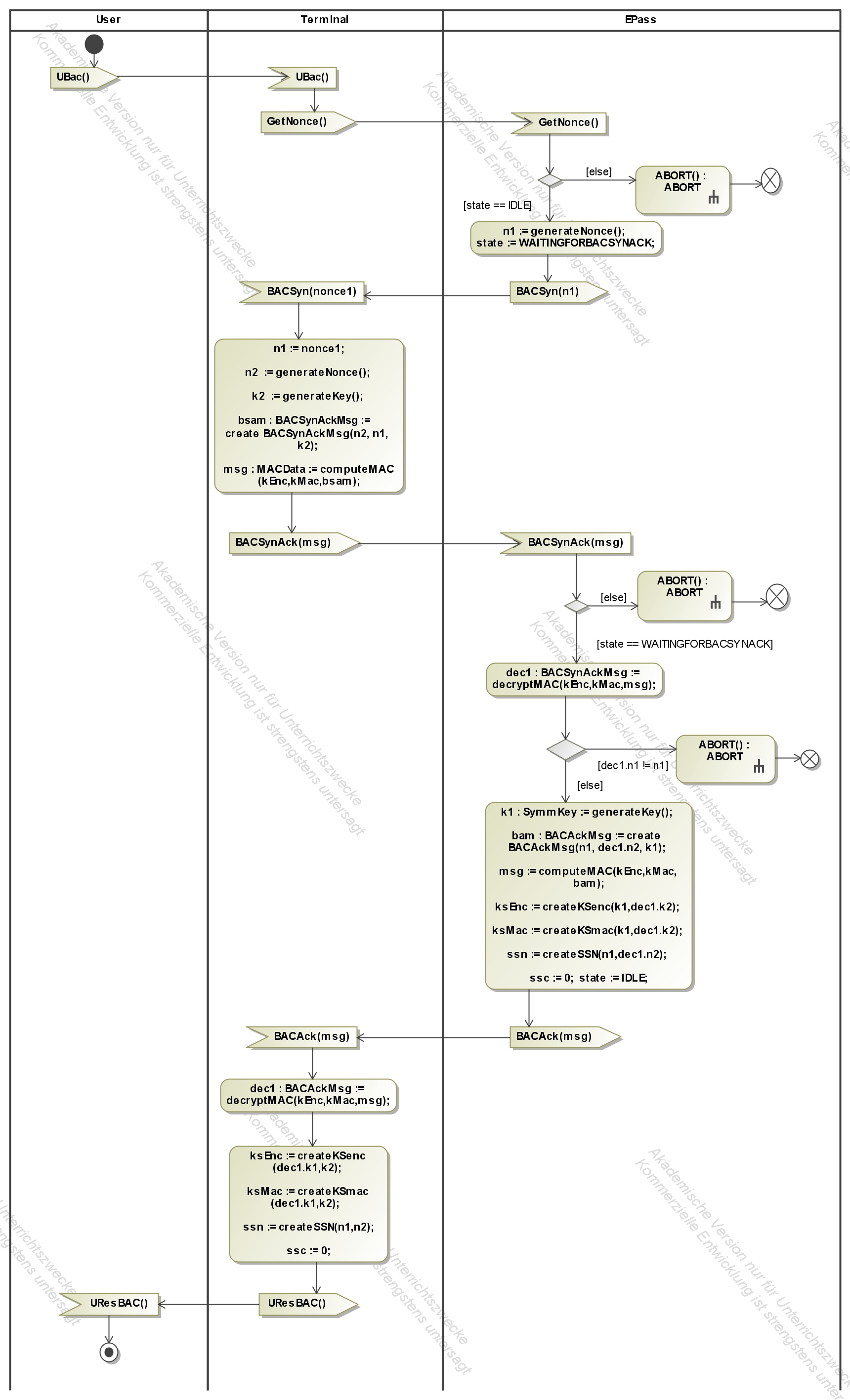

• BAC:

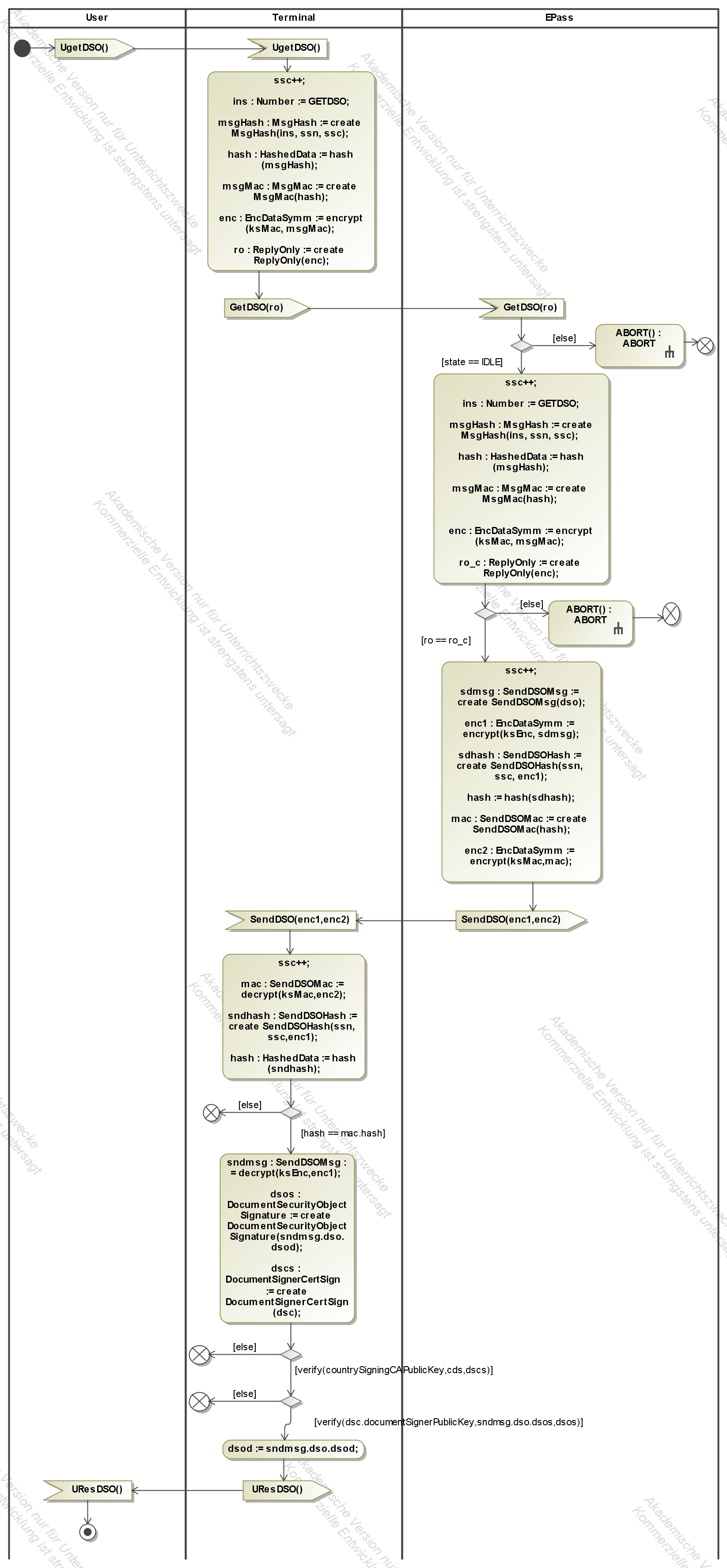

• DSO:

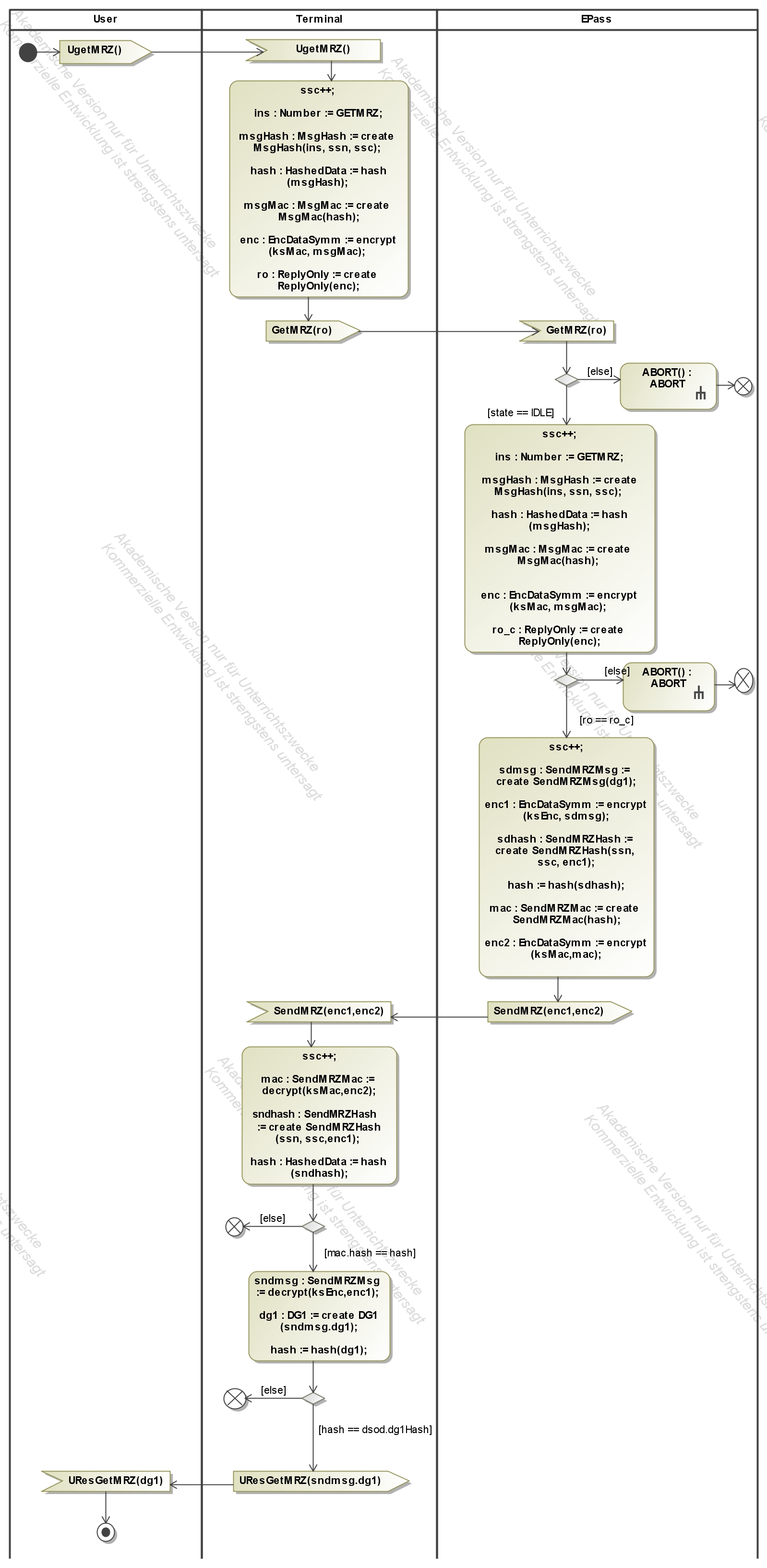

• MRZ:

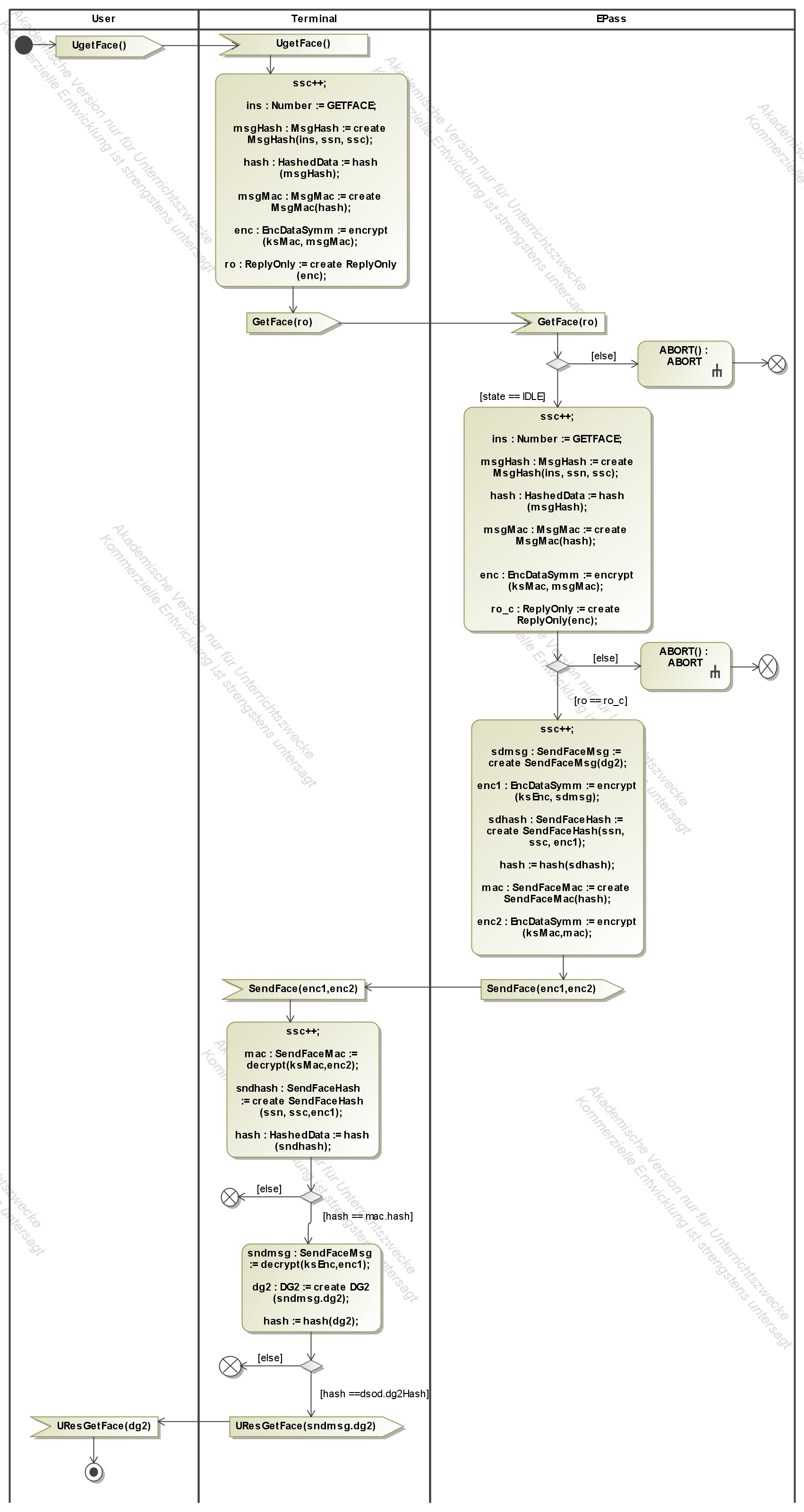

• FACE:

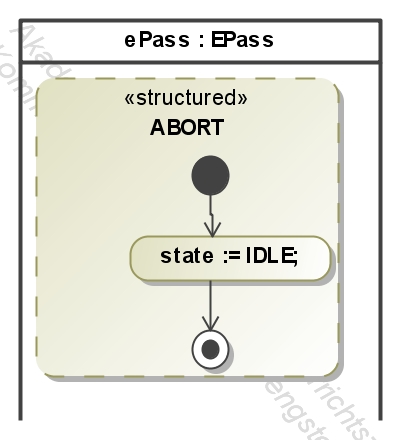

• Abort:





Back, continue to the generated code
