Modeling Online-Banking (3)
The last step is a detailed
description of the identified protocols with UML Activity diagrams and our Model Extension Language MEL.

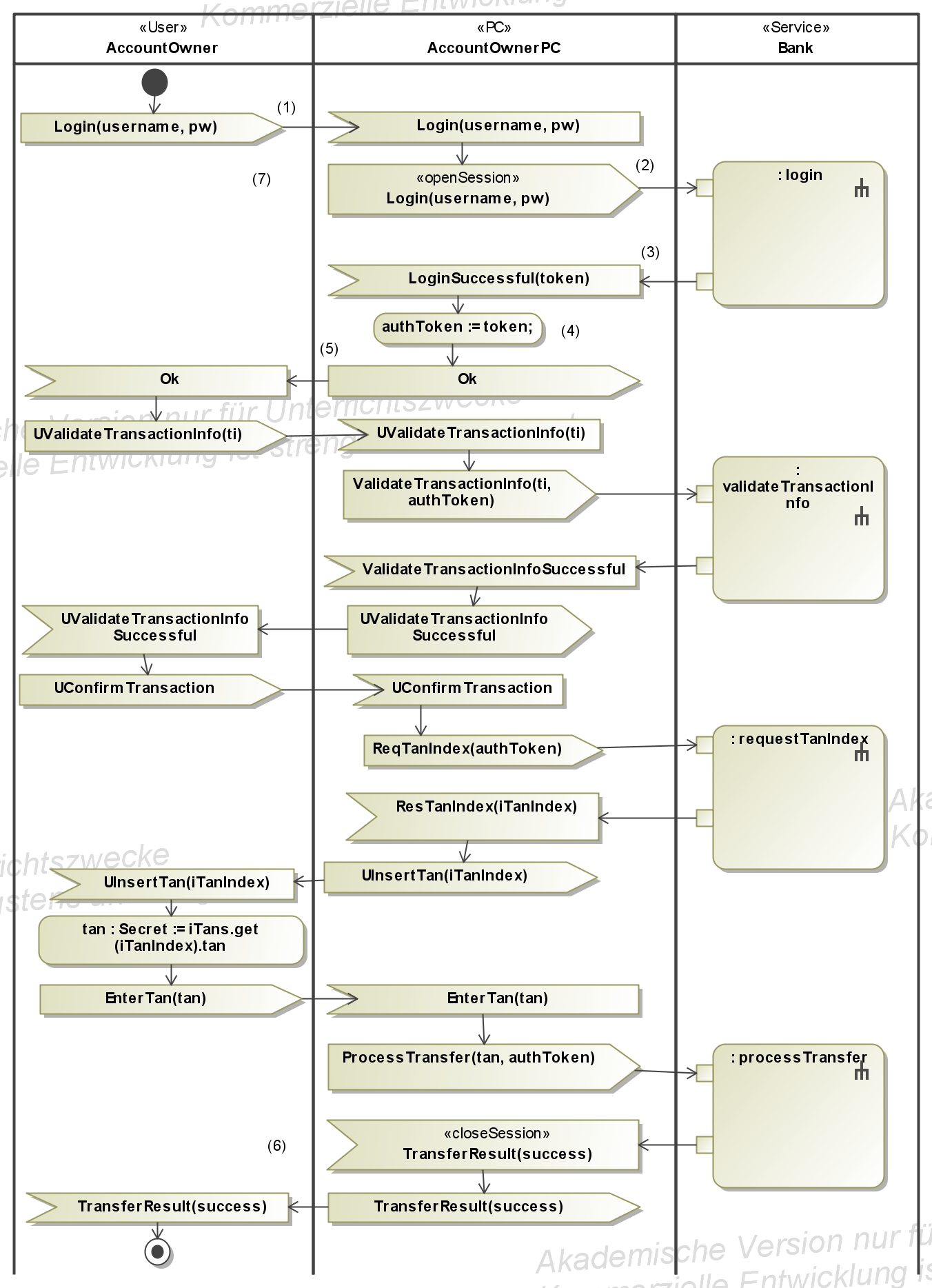

- Activity diagram that describes the online transaction protocol

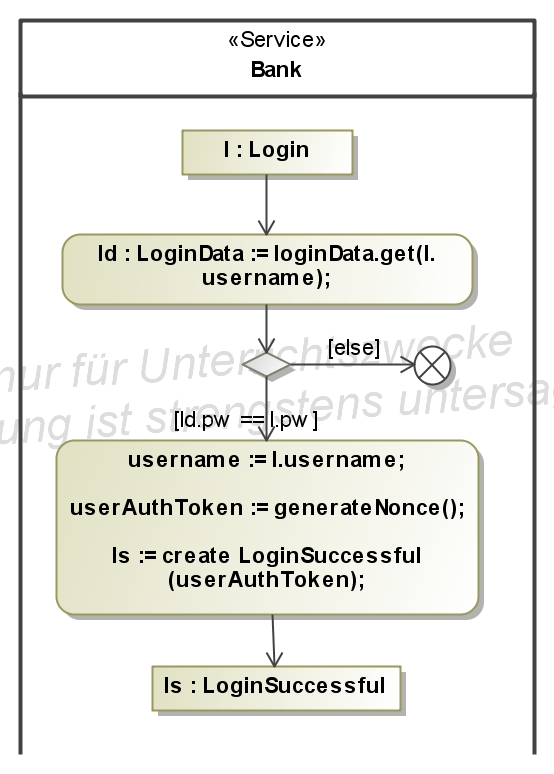

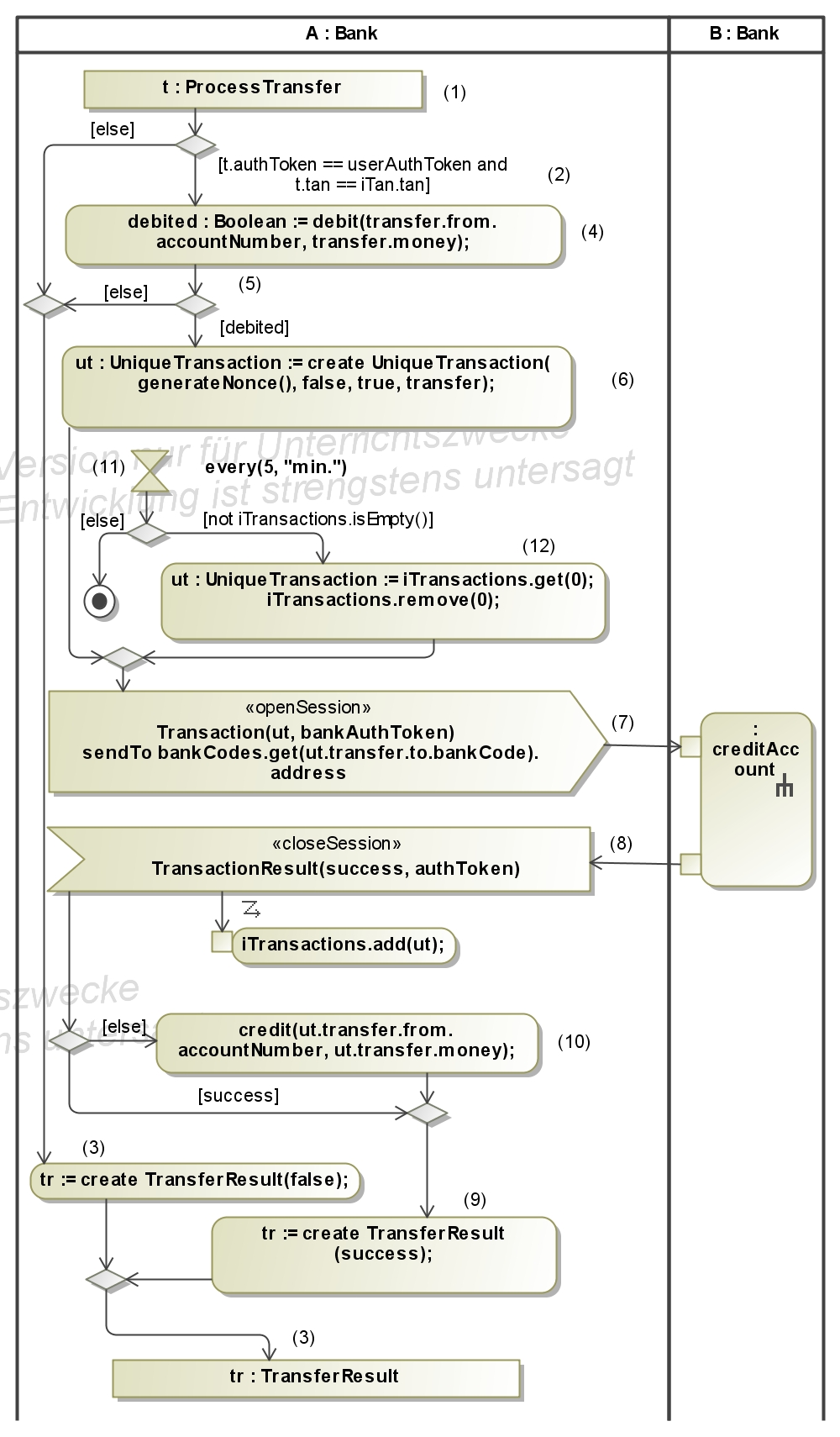

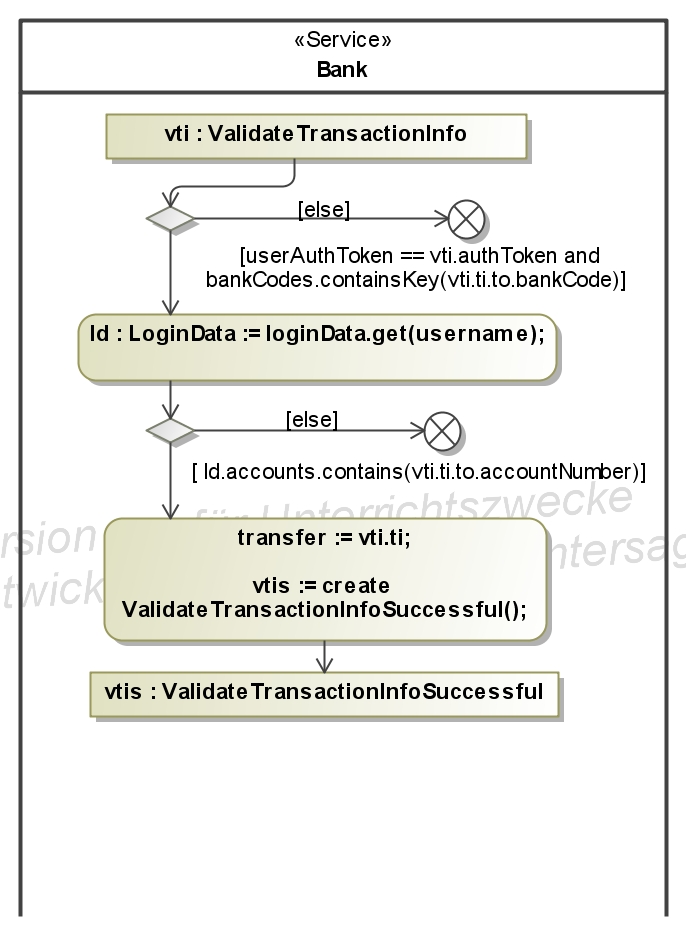

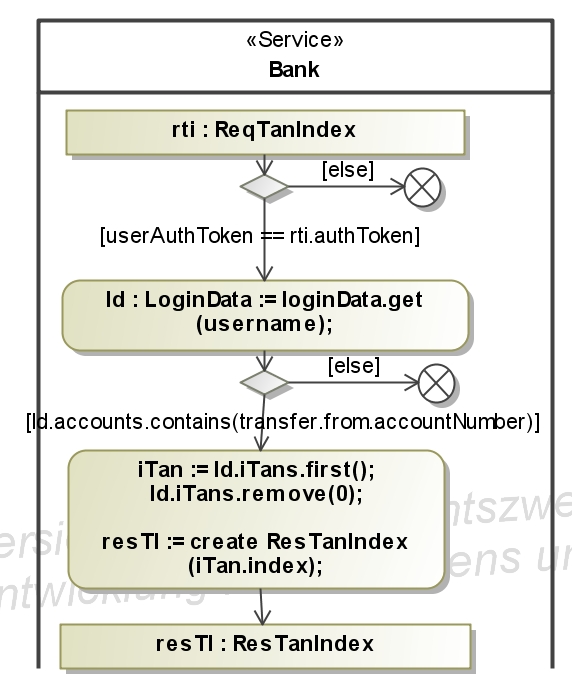

- Service operations (login, validateTransactionInfo and requestTanIndex, processTransfer) called in the diagram above

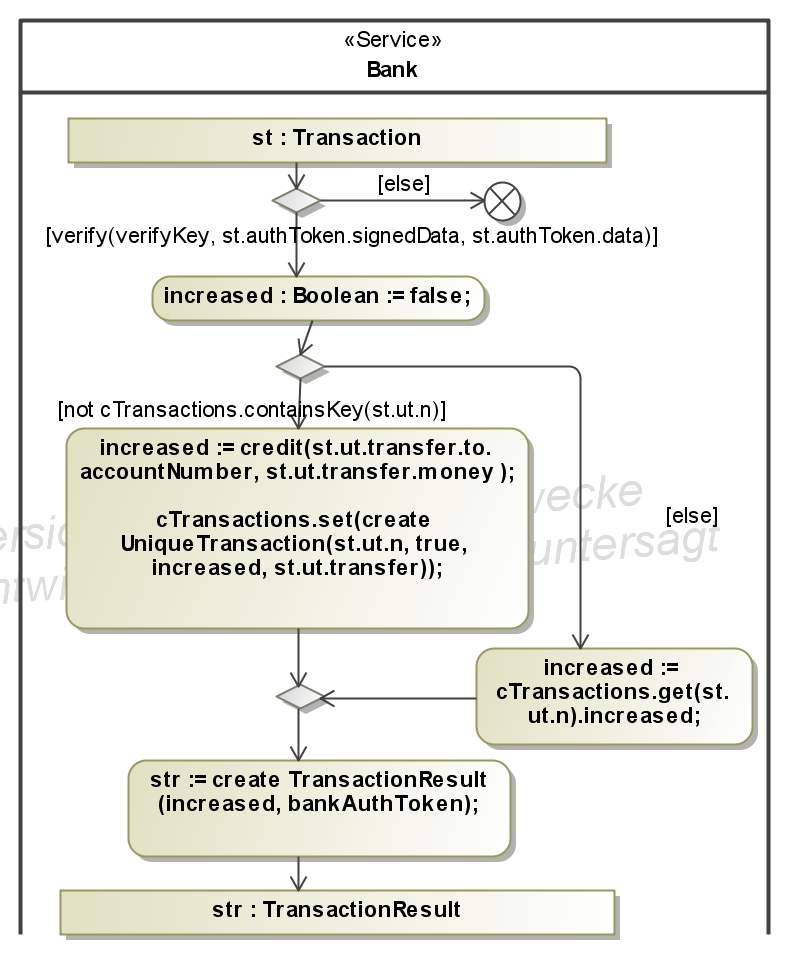

- Service operation creditAccount
- Private operations (credit and debit) from the service Bank

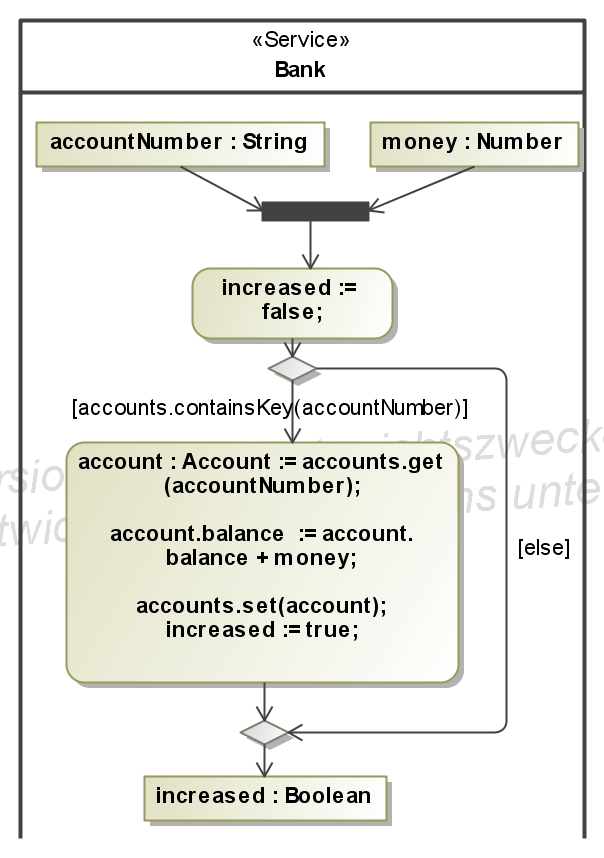

credit

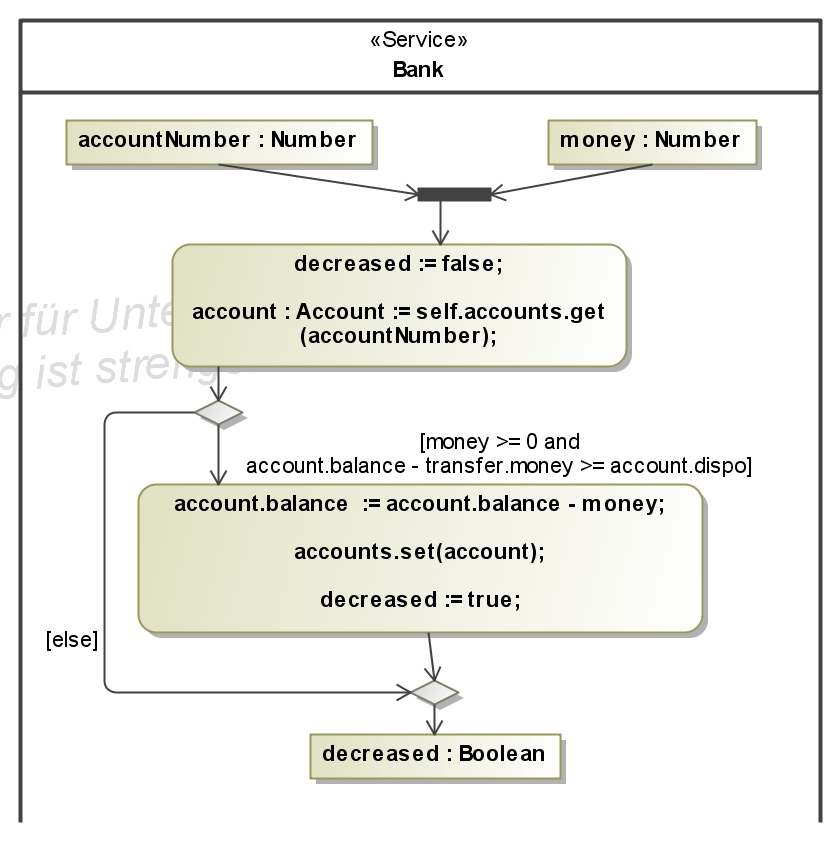

debit
